10Gb/s SFP+双纤光模块
| 型号 | 速率 | 工作波长 | 传输距离 | 发光功率 | 接收灵敏度 | 管芯 | 接口 |
| FYPP-8596-M3B | 10Gb/s | 850nm | 300M | -5~-1dBm | ≤-10dBm | VCSEL | LC |
| FYPP-1396-02B | 10Gb/s | 1310nm | 2KM | -6~-1dBm | ≤-14.5dBm | FP | LC |
| FYPP-1396-10B | 10Gb/s | 1310nm | 10KM | -6~-1dBm | ≤-14.5dBm | DFB | LC |
| FYPP-1396-40B | 10Gb/s | 1310nm | 40KM | -1~4dBm | ≤-15.8dBm | DFB | LC |
| FYPP-1596-40B | 10Gb/s | 1550nm | 40KM | -1~4dBm | ≤-15.8dBm | EML | LC |
| FYPP-1596-80B | 10Gb/s | 1550nm | 80KM | 0~5dBm | ≤-23dBm | EML | LC |
| FYPPC-**96-10B | 10Gb/s | 1270nm~1610nm | 10KM | -5~-1dBm | ≤-14.5dBm | DFB | LC |
| FYPPC-**96-40B | 10Gb/s | 1270nm~1330nm | 40KM | -1~3dBm | ≤-15.8dBm | DFB | LC |
| FYPPC-**96-40B | 10Gb/s | 1470nm~1610nm | 40KM | -1~3dBm | ≤-15.8dBm | EML | LC |
| FYPPC-**96-80B | 10Gb/s | 1470nm~1610nm | 80KM | 0~4dBm | ≤-23dBm | EML | LC |
| FYPPD-**96-40B | 10Gb/s | C17~C61 | 40KM | -1~3dBm | ≤-15.8dBm | EML | LC |
| FYPPD-**96-80B | 10Gb/s | C17~C61 | 80KM | 0~4dBm | ≤-23dBm | EML | LC |
备注：CWDM型号栏**对应波长1270nm~1610nm，DWDM型号栏**对应通道C17(1563.86nm)~C61(1528.77nm)
10Gb/s SFP+单模单纤光模块
| 型号 | 速率 | 工作波长 | 传输距离 | 发光功率 | 接收灵敏度 | 管芯 | 接口 |
| FYPPB-2396-10B | 10Gb/s | Tx1270/Rx1330nm | 10KM | -5~-1dBm | ≤-14.5dBm | DFB | LC |
| FYPPB-3296-10B | 10Gb/s | Tx1330/Rx1270nm | 10KM | -5~-1dBm | ≤-14.5dBm | DFB | LC |
| FYPPB-2396-40B | 10Gb/s | Tx1270/Rx1330nm | 40KM | 0~5dBm | ≤-15.8dBm | DFB | LC |
| FYPPB-3296-40B | 10Gb/s | Tx1330/Rx1270nm | 40KM | 0~5dBm | ≤-15.8dBm | DFB | LC |
| FYPPB-2396-60B | 10Gb/s | Tx1270/Rx1330nm | 60KM | 0~5dBm | ≤-20dBm | DFB | LC |
| FYPPB-3296-60B | 10Gb/s | Tx1330/Rx1270nm | 60KM | 0~5dBm | ≤-20dBm | DFB | LC |
| FYPPB-4596-80B | 10Gb/s | Tx1490/Rx1550nm | 80KM | 0~5dBm | ≤-23dBm | EML | LC |
| FYPPB-5496-80B | 10Gb/s | Tx1550/Rx1490nm | 80KM | 0~5dBm | ≤-23dBm | EML | LC |

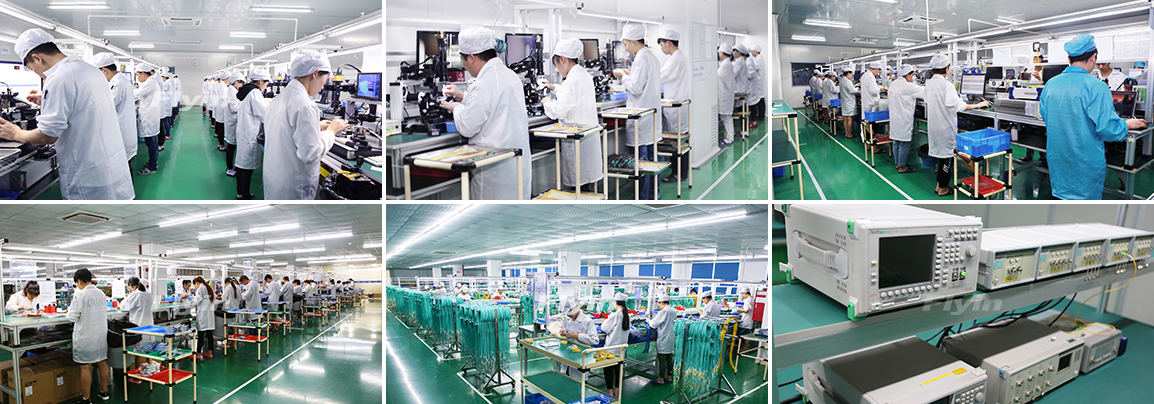

生产车间展示
10Gb/s SFP+双纤光模块
| 型号 | 速率 | 工作波长 | 传输距离 | 发光功率 | 接收灵敏度 | 管芯 | 接口 |
| FYPP-8596-M3BD | 10Gb/s | 850nm | 300M | -6~-1dBm | ≤-10dBm | VCSEL | LC/SC |
| FYPP-1396-02BD | 10Gb/s | 1310nm | 2KM | -6~-0.5dBm | ≤-14.4dBm | FP | LC/SC |
| FYPP-1396-10BD | 10Gb/s | 1310nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC/SC |
| FYPP-1596-40BD | 10Gb/s | 1550nm | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPP-1596-80BD | 10Gb/s | 1550nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
| FYPPC-**96-10BD | 10Gb/s | 1270nm~1610nm | 10KM | -6~-1dBm | ≤-15dBm | DFP | LC/SC |
| FYPPC-**96-40BD | 10Gb/s | 1470nm~1610nm | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPPC-**96-80BD | 10Gb/s | 1470nm~1610nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
| FYPPD-**96-40BD | 10Gb/s | C17~C61 | 40KM | -1~3dBm | ≤-16dBm | EML | LC/SC |
| FYPPD-**96-80BD | 10Gb/s | C17~C61 | 80KM | -1~4dBm | ≤-23dBm | EML | LC/SC |
备注：CWDM型号栏**对应波长1270nm~1610nm，DWDM型号栏**对应通道C17(1563.86nm)~C61(1528.77nm)
10Gb/s SFP+单模单纤光模块
| 型号 | 速率 | 工作波长 | 传输距离 | 发光功率 | 接收灵敏度 | 管芯 | 接口 |
| FYPPB-2396-10BD | 10Gb/s | Tx1270/Rx1330nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC |
| FYPPB-3296-10BD | 10Gb/s | Tx1330/Rx1270nm | 10KM | -6~-0.5dBm | ≤-14.4dBm | DFP | LC |
| FYPPB-2396-40BD | 10Gb/s | Tx1270/Rx1330nm | 40KM | -1~3dBm | ≤-16dBm | DFP | LC |
| FYPPB-3296-40BD | 10Gb/s | Tx1330/Rx1270nm | 40KM | -1~3dBm | ≤-16dBm | DFP | LC |
| FYPPB-2396-60BD | 10Gb/s | Tx1270/Rx1330nm | 60KM | 0~5dBm | ≤-20dBm | DFP | LC |
| FYPPB-3296-60BD | 10Gb/s | Tx1330/Rx1270nm | 60KM | 0~5dBm | ≤-20dBm | DFP | LC |
| FYPPB-4596-80BD | 10Gb/s | Tx1490/Rx1550nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC |
| FYPPB-5496-80BD | 10Gb/s | Tx1550/Rx1490nm | 80KM | -1~4dBm | ≤-23dBm | EML | LC |
